TN-35F
Individual spindle control
- Computer yarn length measurement.
- Yarn speed adjustable from 300~1,000 meters/per minute.
Auto lubrication system.
- Lube roller speed is adjustable & proportional to yarn speed.
- Dosing pump lube system is also available. (optional)
Thread guiding system
- Ceramic yarn guiding system.
- Precisely yarn laying.
Electro-magnetic tension device
- Automatic tension release throughout the cycle for consistent winding tension.
Circulating oiling tank
- Oil tank good to be connected for 30 spindles.
- Hot lube tank is also available. (with temperature controller)
Other characteristics

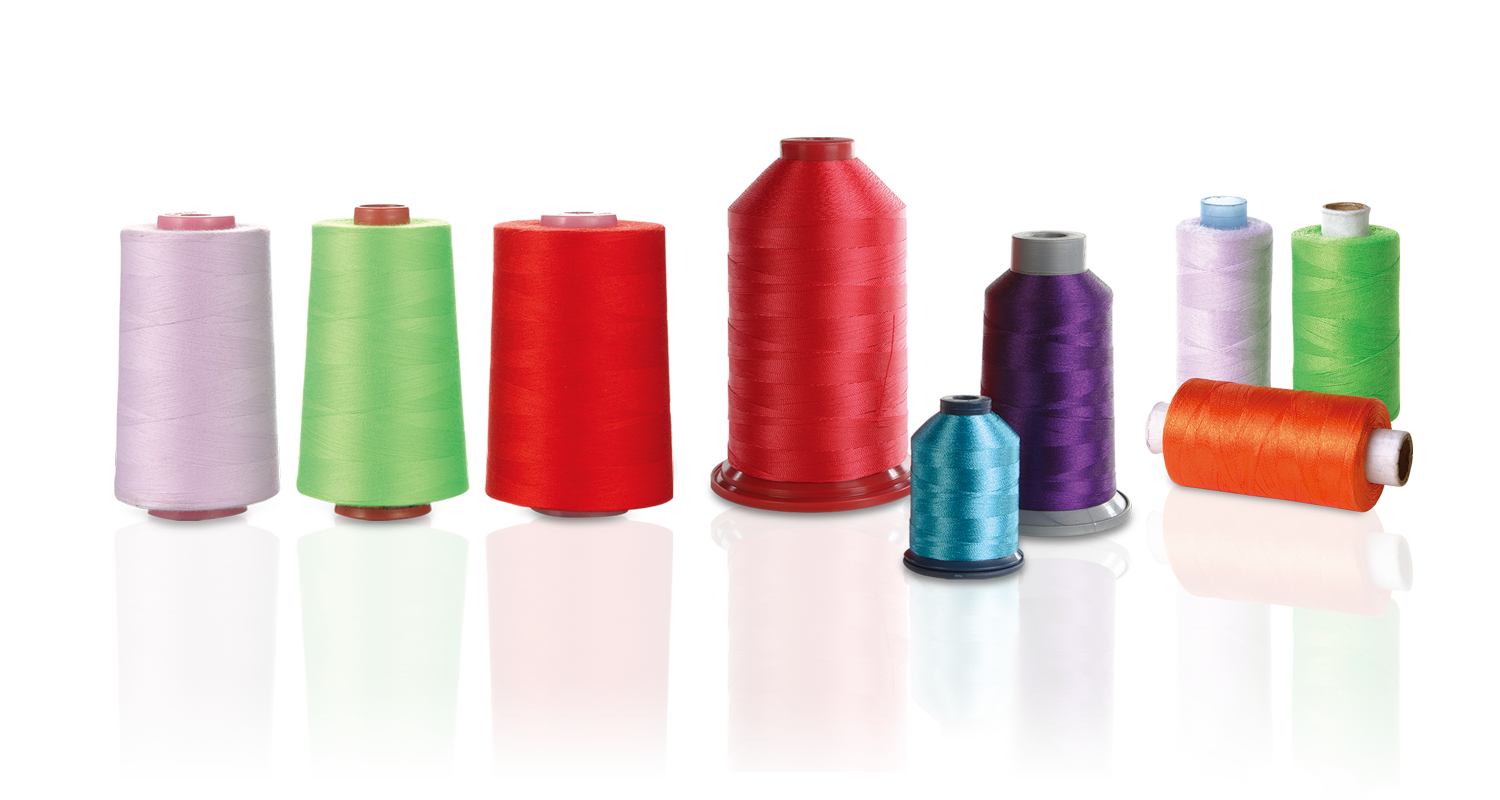

- Cone, Spool type is available for S.P. threads, cotton threads & sewing threads.
- Kingspool type is available for embroidery threads, nylon threads & bonded threads.
- For filaments, fiber yarns, monofilaments & technical threads are subject to final confirmation.
| Package shape | Q Winding | Q Winding | Q Winding | Q Winding |
| Taper angle | 2°20`~5°57` | 0° | 0°~2°20` | |
| Max. Outer dia | 140mm | 90mm | ||
| Max. Capacity | 150 LBS/8hrs 40/2 SP | 240 LBS/8hrs 210D/2 Nylon | ||
| Traverse | 3″~4″ | |||
| No. of spindle | 5 | |||
| Spindle speed | Max 10000 r.p.m | |||
| Yarn speed | Max 1000 m/min | |||
| Cross ratio | 5~8F | |||
| Weight | N.W.550kgs G.W.700kgs | |||
| Measurement | 220L x 90W x 160H(cm) | |||
All specifications and designs subject to change without notice.
| Package shape | Q Winding | Q Winding | Q Winding | P Winding |
| Taper angle | 2°20`~5°57` | 0° | 0°~2°20` | |
| Max. Outer dia | 140mm | 90mm | ||
| Max. Capacity | 75 LBS/8hrs 40/2 SP | 60 LBS/8hrs 210D/2 Nylon | ||
| Traverse | 3″~4″ | |||
| No. of spindle | 5 | |||
| Spindle speed | Max 10000 r.p.m | |||
| Yarn speed | Max 1000 m/min | |||
| Cross ratio | 5~8F | |||
| Weight | N.W.550kgs G.W.700kgs | |||
| Measurement | 220L x 90W x 160H(cm) | |||
All specifications and designs subject to change without notice.
Drum thread-guiding system
Electro-magnetic tension
Constant lubrication system
Micro processor controller
Circulating oiling tank
Hot circulating oiling tan
Circulating stirring lube tank
Dosing pump lubrication system
