TN05-(A/H/Y)

Portable Type Cross Cone Winder - Laboratory machines

A= Cone Type

H= Spool / Cylindrical Type

Y= Kingspool Type

The Portable Type Cross Cone Winder developed and manufactured by TAINING is lightweight and easy to carry. It is equipped with a counter device, making it easy to set the winding quantity, and features automatic stop, automatic thread break stop, and a funnel-shaped feeding tube system for accurate tube feeding. The machine also has an open-and-close cutting device that automatically and accurately cuts the thread. As a fully automatic machine, it improves efficiency and saves labor.

 Suitable for：
Garment industry、Sewing thread making factory、Shoe making industry and Embroidery industry …..etc


  • It is small and portable freely.
  • Equipped with timer.
  • With stepless adjuster, easily to adjust the pitch of coils for different yarn count to meet the nice looking appearance of shapes.
  • Suitable for all kinds of sewing thread.
  • Easy operation & maintenance.
  • Suitable for Laboratory, garment industry, sewing thread making factory, shoe making industry, and embroidery industry etc.

ModelTN05 (A/H/Y)

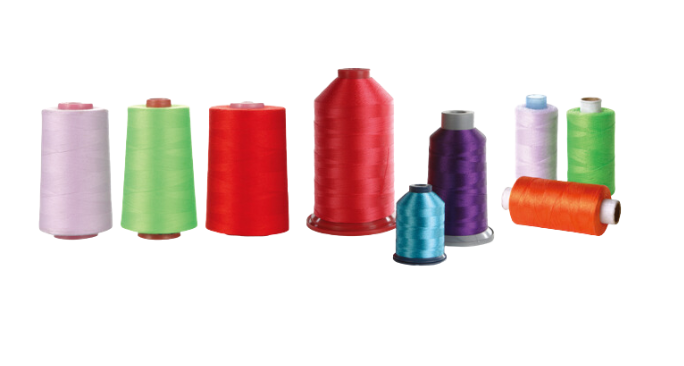

Package shape

MODEL- A

MODEL- K

MODEL- H

MODEL- Y

Traverse98mm98mm60mm98mm
Cross ratio44
MAX.Outer ø60mm60mm
No. of spindle22
Power60W90W

All specifications and designs subject to change without notice.
