TN48H X2-01

Central control × Double line (Single door)

HMI integration: extruder setting value and haul-off value are integrated on the same screen
Digital parameter setting: parameter digitized, stable production quality.
Production program: 50 sets of program modules easy to select production specifications.
Preset temperature control: can set the preheating time and temperature of the extruder.
Monitoring and protection function: the screw scan be started only when reaches to extruder’s presetting temperature.

Operation panel: 10 inches HMI, clear operation.
Monitoring setting: Heating temperature of 6 sections of the extruder.
Warning feedback: Buzzer warns of overheating and automatically turns off the heater.

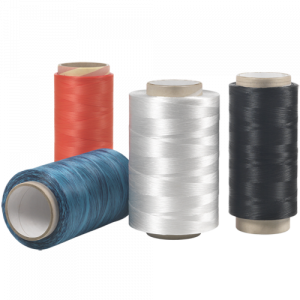

Yarn output speed: Yarn output can reach yarn speed 30-800m/min.
Yarn break deceleration: When single yarn breaks, slow down speed automatically.

Model	TN48H X2-01	TN48H X2-02
Inverter	Double extruder 7.5HP×2 ⧸ Double haul-off machine 1HP×2
Packing measuremant	100L×52W×180H (cm)	100L×60W×180H (cm)
Machine Weigjt	N.W.:175KGS G.W.:250KGS	N.W.:210KGS G.W.:295KGS

All specifications and designs subject to change without notice.
